Shellers & Threshers

A range of maize shellers and multi-crop threshers to suit your needs. Gone are the days of manual threshing.

Double Cob Sheller

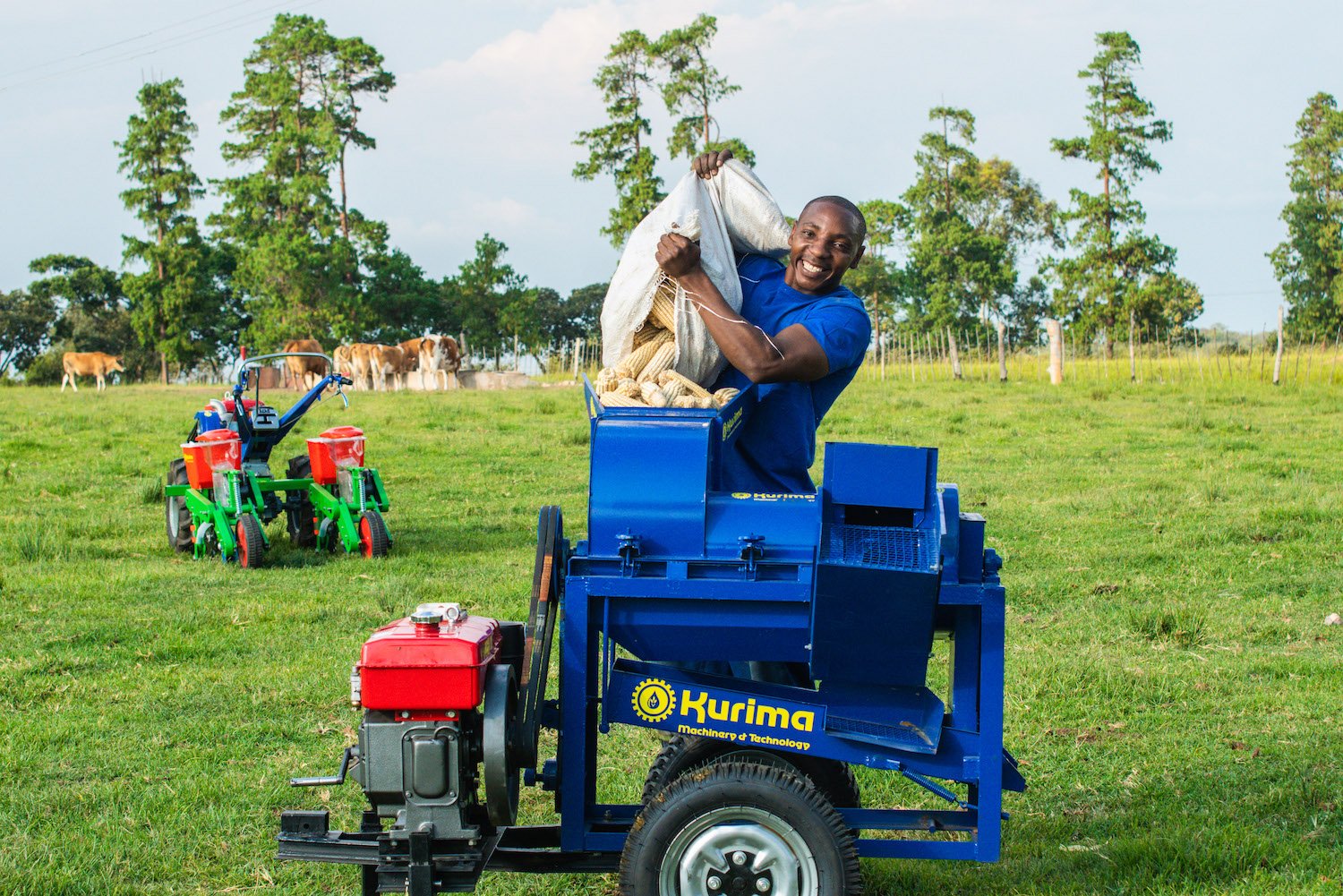

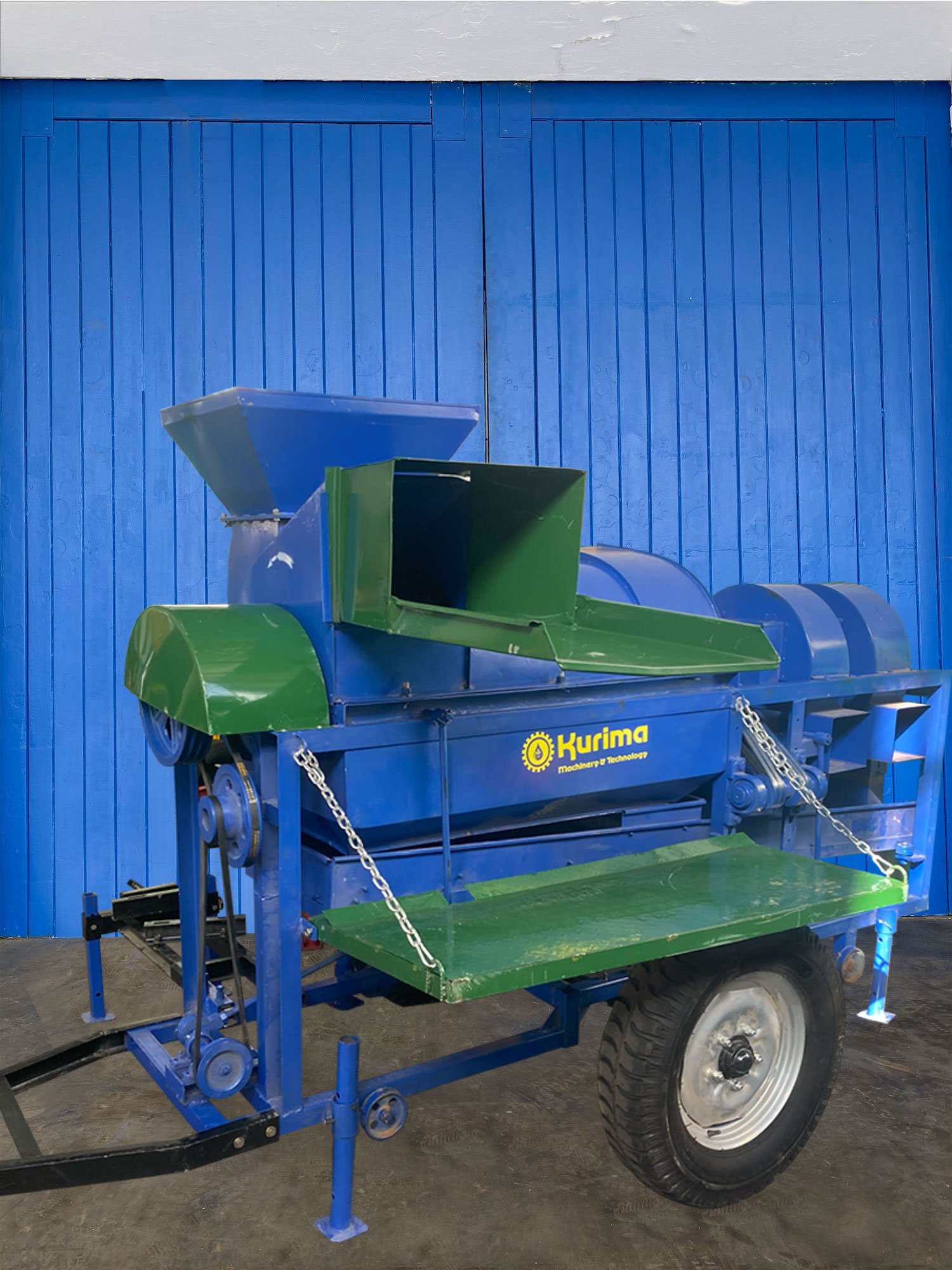

Multi-functional crop thresher used for threshing maize, soyabean, wheat and other traditional small grain crops. Equipped with a blower to facilitate the bagging of clean grain, separated from the unwanted foreign material.
Includes interchangeable sieves of different sizes to facilitate threshing of a wide variety of grain crops, with minimum breakage.
Power requirement: 6-8 Hp diesel
Start mechanism: Crank
Weight: 250kgs
Overall size: 118 x 80 x 95cm
Sieves (mm): Maize 20mm, Soyabean 12mm, Sorghum 4mm
Blower/Fan: 1
Wheels on axle: 12 inches
Output per hour: 600 - 2000kgs (Depending On Crop)

This sheller is a professional maize threshing. It has a high peeling rate and good impurity removal. The maize that is threshed by this machine is clean, free of impurities and low damage rate. It has hooks 50 cm above the ground for easy bagging or packing into sacks. The shelling unit consists of deformed bars which make it unbreakable if foreign objects are for example stone or other metal that does not easily break.
NB: Does not do maize on husk.
Function: Maize shelling
Overall dimensions LxWxH): 2.4x1.5x1.1m
Net Weight: 400kg
Productivity: 3000-4000 kg p/hour
Breakage rate: 5%
Damage rate: 3%
Power: 16hp to 20hp diesel engine and a 12kw to 15kw electric motor

Machine developed for small to medium maize producers. With outlet spouts that separate the maize, comb and straw, reducing the classification process time.

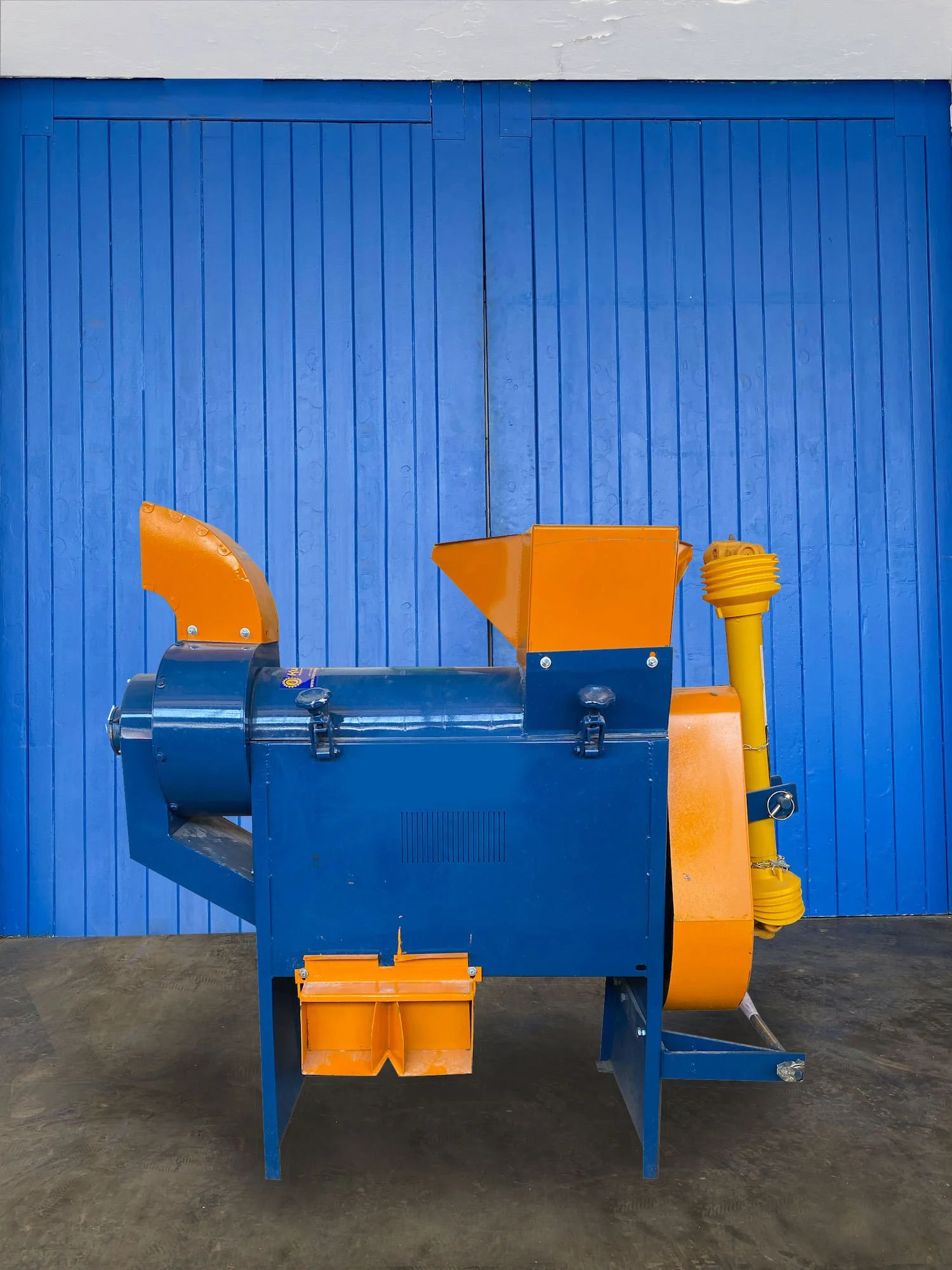

Models: B330 & B330T
Approximate weight (kg): 130
Width (mm): 1340
Length (mm): 680
Height (mm): 1330
RPM: 1.450 up to 1.500
Pulley 3 VB: 220 mm
Flat pulley: 200mm
Electric engine: 7.5HP
Combustion engine: 16 HP Diesel Engine / PTO options
Belt for base 0,80m: B-73 up to B-78
Production up to: 1500-1800 Kg/hour
Production may vary depending on the condition of the products to be processed.

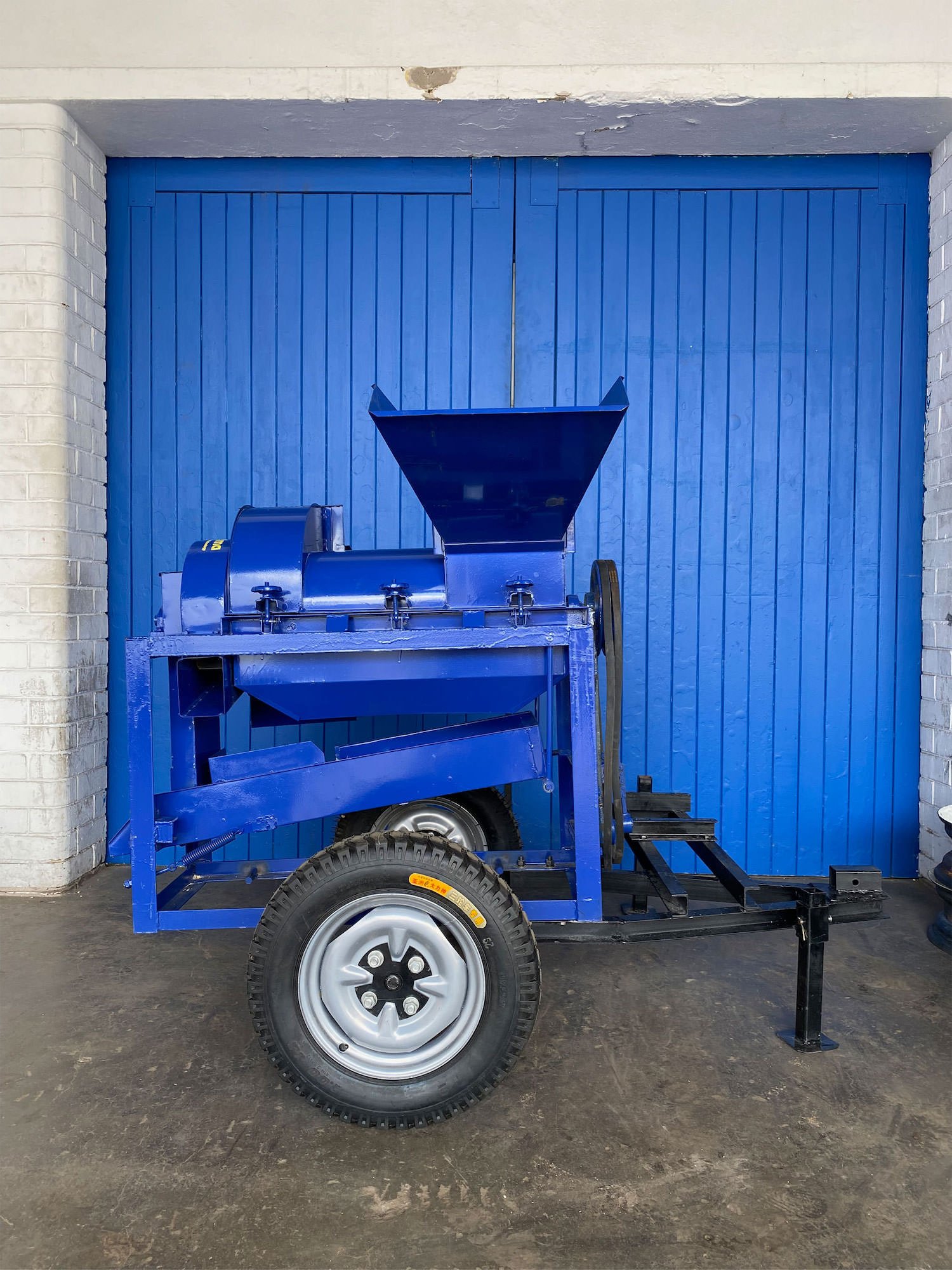

For threshing various crops such as maize, soybeans, peas, sorghum, millet. The majority of the straw is broken into fine pieces of
2 - 3 cm lengths and can be an ingredient used for animal feed.
The machine requires at least 5.96 KW, and can be driven by either a diesel engine or electric motor.
Each thresher comes along with 3 screens for different crops. It includes a highly-efficient vibrating screen and air blower, which cleans the final product effectively.
Size (LxWxH): 1,500 x 600 x 1,450mm
Roller length: 1,000mm
Threshing corn hammer: 48pcs
Threshing teeth: 36pcs
Capacity per hour: 3,000-4,000kgs (Depending On Crop)
Main shaft speed: 2,200rpm
Cleaning method: Vibration screen separation
Cleaning fan: Adjustable blower
Matched power: 5.96-11kw electric motor or 10hp diesel engine
Machine average weight: 500kg
Grain Moisture content: 15-20 %

The peanut sheller performs three functions i.e., feeding the groundnut into the sheller, shelling the groundnuts and cleaning the groundnut from the mixture. Thus, it is made up of a feeding unit, shelling unit and a cleaning unit. The shelling unit provided to shell the groundnut is composed of two main parts i.e., the crushing plate and the grate. The pods are broken by impact and rubbing action between rotor and concave grate. The cleaning unit has got a fan which is operated by the main rotor shaft. The fan creates a blast of air to blow away the empty shells. The nuts are collected in a pan.
Function: Groundnut shelling and husking
Overall dimensions (LxWxH): 1330 x 750 x 1570mm
Net Weight: 160kg
Productivity: 600 -800 kg /hr
Breakage rate: 2%
Damage rate: 3%
Peeling rate: 98%
Power: 3kw electric motor or 8HP diesel engine
